Car washer product

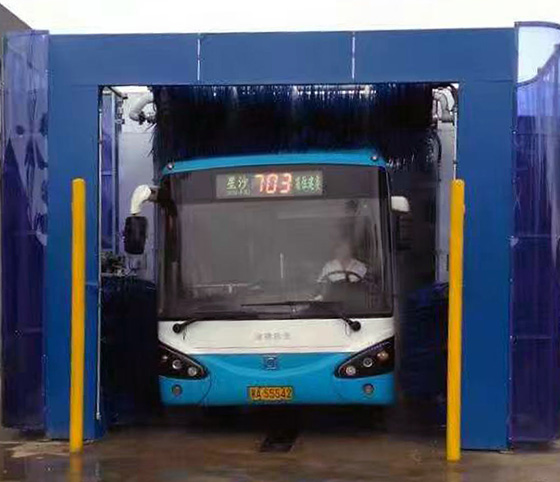

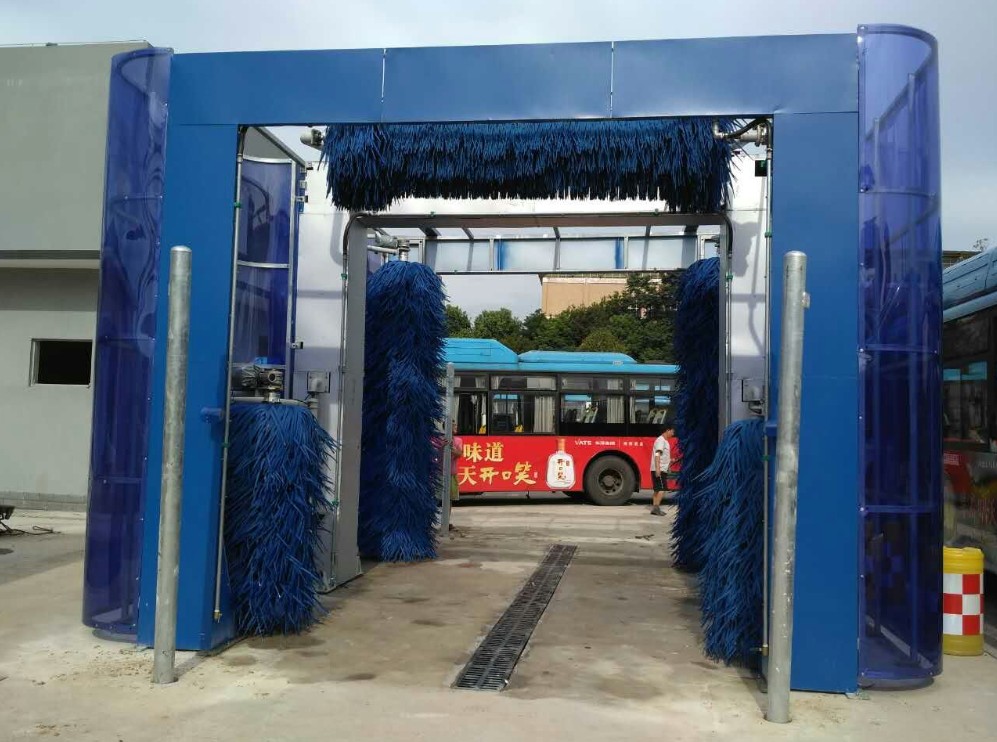

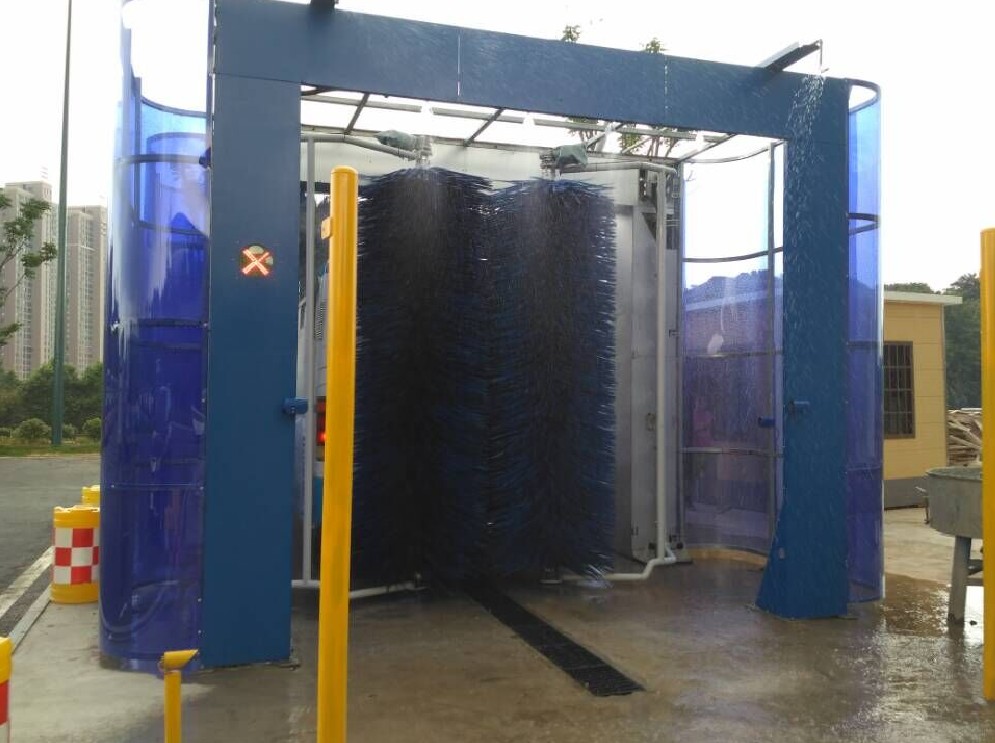

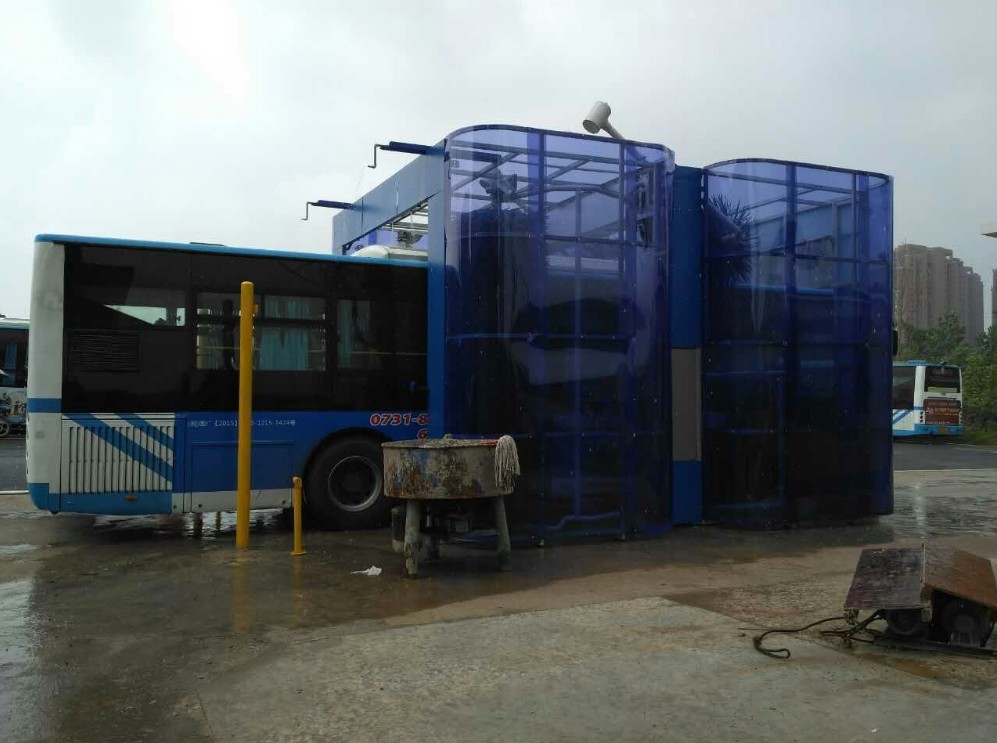

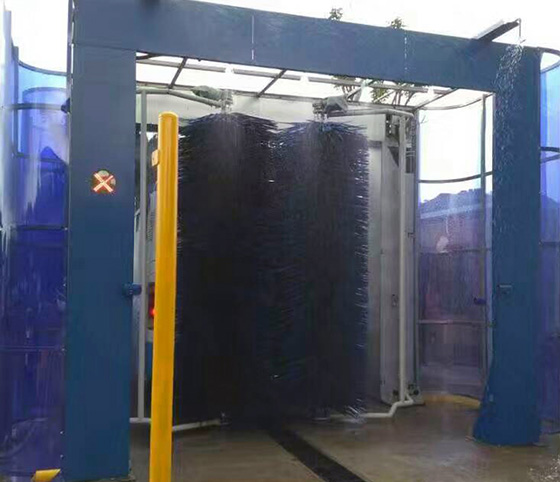

Though type bus/truck wash machine（CB-750）
Description:
With 2 long brushes, 2 short brushes, 1 top brushes, total 5 nylon brushes.
Features:
High pressure water, shampoo
Equipment Parameter
Model | CB-750 (Drive- through) |
Machine dimension | 6241x5729x4780mm |
Assembling range | / |
Available size for car | L(No limited)≤3000x3200mm |
Main voltage | 380v 3phase 50HZ |
Total power | 7.15kw |
Water supply | DN25mm water flow rate≥120L/min |
Air pressure | 0.75-0.9MPa Air flow rate≥0.6m3/min |
Shampoo consumption | 25-30ml/car |
Washing time | 4’/car |
Car wash capacity | 12-15cars/hour |
Top brush | 1 set |
Big side brush | 4 set |
Equipment Advantages
1.With 2 long brushes, 2 short brushes, 1 top brushes, total 5 nylon brushes.
2.With pre-wash, shampoos, brushes wash, final rinse washing.
3.Bus roof, front, rear, both sides and chassis to wash.
4.PLC control systems&Touch screen pannel.
5. Trafic light on the machine to indicate the machine to readiness.
6.Proximity swith and photo sensors for activation of washing bus.
7.Water proof IP56 Siti brand motor on brushes.
8.All bearing and components with high end quality.
9. Hop-dip galvanized steel frame keep the whole machine antirust.
10.With one-site installation and operate training for free.
Equipment Parameter
| Light system | PLC control system made in Japan | Liquid automatic mixing system | Automatic Waxing spraying system |
 |  |  |  |
| Nylon/foam brush | Hot-dip galvanized steel frame | High pressure water system | Banner sensor |
 |  |  |  |
